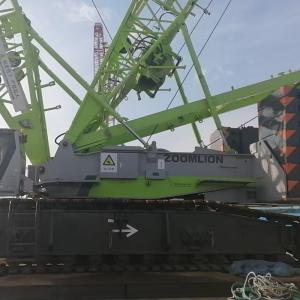

500 Ton Crawler Crane Quality Assurance In Lifting Operation Crawler Mounted Crane 1.2km/H

Product Categories

Shandong Tengfei Hoisting Engineering Co., Ltd.

Trust Seal

Verified Supplier

Credit Check

Supplier Assessment

Contact Now

Name: 500 Ton Crawler Crane Quality Assurance In Lifting Operation Crawler Mounted Crane 12kmH
Brand: ZOOMLION
Price: 1 USD

Brand Name : ZOOMLION

Model Number : ZCC5800

Place of Origin : China

MOQ : One Crane

Price : Negotiable Price

Payment Terms : L/C,T/T

Supply Ability : Supply According to Customer Needs

Delivery Time : According to Order Confirmation

Packaging Details : Packing According to Customer Requirements

Max Travel Speed : 1.2km/h

Slewing Speed : 0.7rpm

Counterweight : 150 tons

Control System : PLC control system

Boom Length : 102m

Max Gradeability : 30%

Max Line Speed : 120m/min

Engine Power : 298kW

Max Lifting Capacity : 500 tons

Fuel Tank Capacity : 1,200L

Jib Length : 30m

Max Lifting Height : 132m

Contact Now

Chapter 5 Luffing Jib Working Conditions

Main boom30m Rear weight 160t Vehicle weight 40t 360°Full slewing Main boom elevation angle 85°
Radians(m)	Jib length(m)									Radians(m)
	24	30	36	42	48	54	60	66	72
14	150									14
16	139	134	129							16
18	123	118	114	111						18
20	108	106	102	99.7	96.4					20
22	95.2	94.7	92.7	90.3	87.2	85				22
24	84.7	84.3	83.7	82.4	79.6	77.5	74.9	72.9		24
26	76.1	75.7	75.2	75	73.1	71.2	68.7	66.9	64.6	26
28	68.8	68.6	68.1	67.9	67.1	65.6	63.4	61.7	59.5	28
30		62.5	62	61.9	61.1	60.8	58.7	57.1	55	30
32		57.3	56.9	56.7	56	55.7	54.5	53.1	51.1	32
34		52.6	52.4	52.3	51.5	51.2	50.4	49.5	47.6	34
36			48.4	48.3	47.6	47.3	46.5	46.1	44.4	36
38			44.9	44.9	44.2	43.9	43.1	42.7	41.6	38
40			41.6	41.8	41.1	40.8	40	39.6	38.8	40
44				36.4	35.8	35.6	34.8	34.4	33.6	44
48					31.5	31.3	30.5	30.1	29.3	48
52					27.7	27.7	26.9	26.5	25.8	52
56						24.5	23.8	23.5	22.7	56
60							21.2	20.9	20.1	60
64								18.6	17.8	64
68								16.5	15.8	68
72									14	72

Main boom 36m Rear weight 160t Vehicle weight 40t 360°Full slewing Main boom elevation angle 85°
Radians (m)	Jib length(m)									Radians (m)
	24	30	36	42	48	54	60	66	72
14	150									14
16	134	129								16
18	118	114	110							18
20	106	102	99.1	96.4	93					20
22	95	92.9	89.8	87.4	84.3	82.2				22
24	84.5	84	81.9	79.7	77	75	72.4			24
26	75.9	75.5	74.9	73.3	70.8	68.9	66.5	64.7	62.5	26
28	68.7	68.4	67.8	67.6	65.4	63.7	61.3	59.7	57.6	28
30		62.4	61.8	61.6	60.6	59	56.8	55.3	53.3	30
32		57.1	56.7	56.5	55.8	54.9	52.9	51.4	49.5	32
34		52.5	52.2	52	51.3	51	49.3	47.9	46	34
36			48.2	48.1	47.4	47.1	46.1	44.8	43	36
38			44.7	44.7	44	43.7	42.8	42	40.2	38
40			41.5	41.6	40.9	40.6	39.8	39.4	37.7	40
44				36.3	35.7	35.4	34.6	34.2	33.3	44
48					31.4	31.1	30.3	29.9	29.1	48
52					27.6	27.5	26.8	26.4	25.6	52
56						24.4	23.7	23.4	22.6	56
60							21.1	20.8	20	60
64							18.7	18.5	17.7	64
68								16.4	15.7	68
72									13.9	72

Main boom 42m Rear weight 160t Vehicle weight 40t 360°Full slewing Main boom elevation angle 85°
Radians (m)	Jib length(m)									Radians (m)
	24	30	36	42	48	54	60	66	72
14	147									14
16	129	124								16
18	114	110	106							18
20	102	99.1	95.6	93						20
22	93	89.8	86.8	84.3	81.4	79.4				22
24	84.2	82.1	79.2	77.2	74.5	72.5	69.9			24
26	75.7	75.2	72.8	71	68.5	66.7	64.3	62.5		26
28	68.5	68.1	67.3	65.6	63.3	61.6	59.4	57.8	55.6	28
30		62.1	61.5	60.9	58.7	57.1	55	53.5	51.5	30
32		56.9	56.4	56.2	54.7	53.2	51.2	49.7	47.8	32
34		52.4	51.9	51.8	51	49.7	47.7	46.4	44.5	34
36			48	47.9	47.1	46.6	44.6	43.4	41.6	36
38			44.5	44.5	43.7	43.4	41.9	40.6	38.9	38
40			41.4	41.4	40.7	40.4	39.3	38.1	36.4	40
44				36.1	35.5	35.2	34.3	33.8	32.2	44
48					31.2	30.9	30.1	29.7	28.6	48
52					27.5	27.4	26.6	26.2	25.4	52
56						24.3	23.5	23.2	22.4	56
60							20.9	20.6	19.8	60
64							18.6	18.3	17.5	64
68								16.3	15.6	68
72									13.8	72
76									12.1	76

Main boom 48m Rear weight 160t Vehicle weight40t 360°Full slewing Main boom elevation angle 85°
Radians(m)	Jib length(m)									Radians(m)
	24	30	36	42	48	54	60	66	72
16	123	119								16
18	110	106	102							18
20	99.1	95.4	92.2	89.7						20
22	89.9	86.8	83.8	81.4	78.6					22
24	82.2	79.4	76.6	74.6	71.9	70	67.4			24
26	75.4	73	70.5	68.7	66.1	64.4	62	60.3		26
28	68.2	67.5	65.2	63.5	61.1	59.5	57.3	55.7	53.5	28
30	62	61.8	60.5	59	56.8	55.2	53.1	51.7	49.6	30
32		56.7	56.1	55	52.9	51.5	49.4	48	46	32
34		52.1	51.7	51.4	49.4	48.1	46.1	44.8	42.9	34
36		48.1	47.8	47.6	46.3	45	43.1	41.9	40.1	36
38			44.3	44.2	43.4	42.3	40.5	39.2	37.5	38
40			41.2	41.1	40.4	39.8	38	36.8	35.1	40
44				35.9	35.2	34.9	33.7	32.6	31	44
48					31	30.7	29.9	29.1	27.5	48
52					27.3	27.2	26.3	26	24.5	52
56						24.1	23.3	23	21.9	56
60							20.7	20.4	19.6	60
64							18.4	18.1	17.4	64
68								16.1	15.4	68
72									13.6	72
76									12	76
